Build the Future
With Your Own Hands.
Learn Like an Engineer.

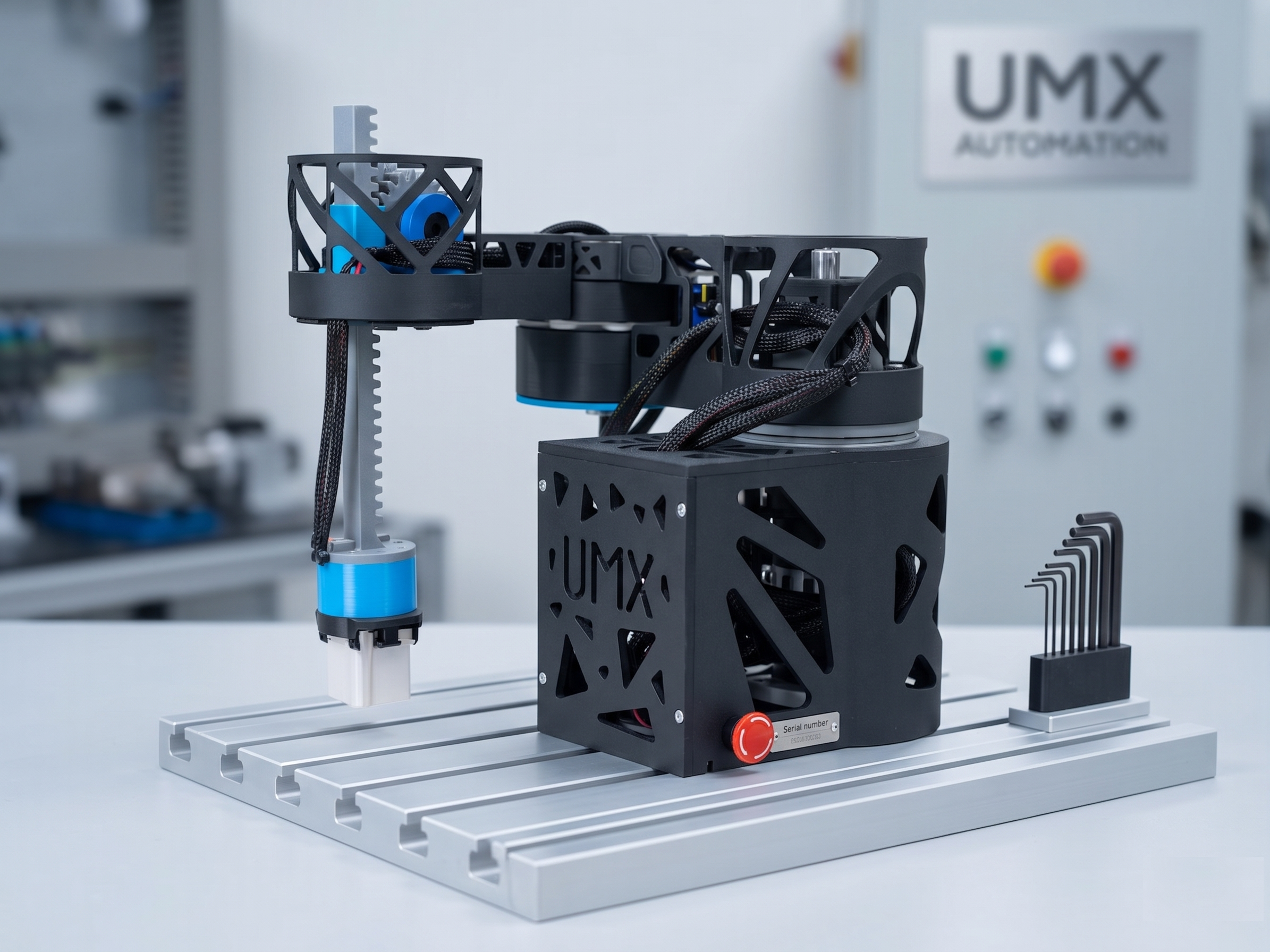

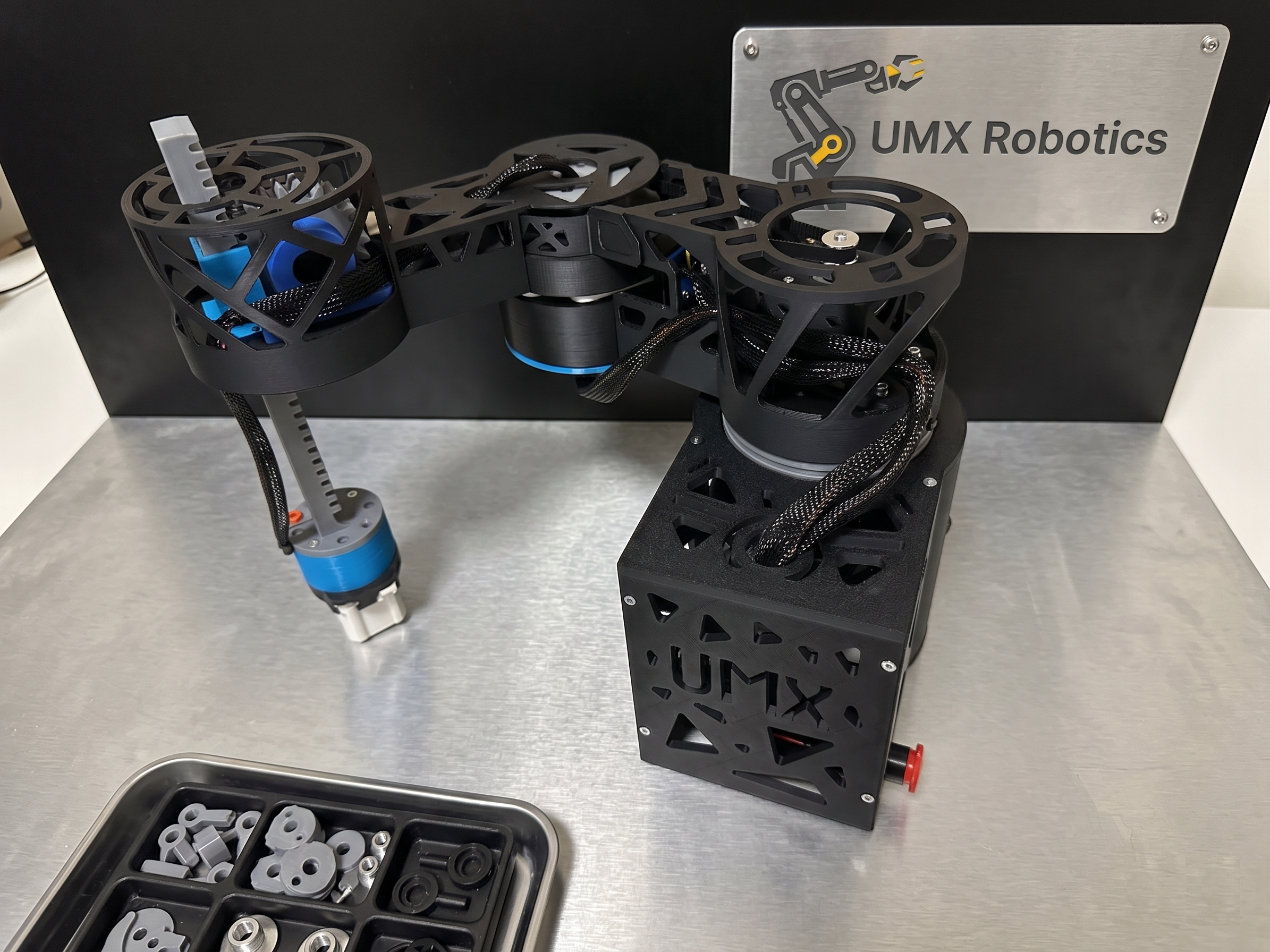

An open-source, 3D-printed robotic arm powered by Arduino ESP32 — designed for classrooms, universities, and maker spaces. Real kinematics, real code, real engineering.
Theory Without Practice
Doesn't Create Engineers
STEM education needs real tools. Our platform delivers them — affordably and openly.
The Problem in Education
Standard STEM curricula are too theoretical. Students write code on screens but never see a physical result. Industrial robots cost a fortune and educational kits are oversimplified toys.
- Students write code but never see it move a real mechanism
- Industrial robots cost $25,000–$150,000+
- Educational kits are simplified toys with no real engineering value
- No connection between mechanics, electronics, and software in class
- Fear of breaking things limits hands-on experience
The UMX Solution
A real kinematic robot that students assemble, wire, and program themselves. Break a part? Just 3D-print a new one.
- Affordable — a robot for every workstation is possible
- Broken part? 3D-print a replacement in hours, not weeks
- Program in C++ & MicroPython — real languages, not blocks
- Integrates mechanics, electronics, and software in one project
- WiFi control & open source — endless project possibilities
Choose Your Kit
Three tiers of involvement — from plug-and-play to full DIY. Pick the one that fits your goals and equipment.
Maker Kit
Electronics + 3D Files — You Build It
We ship the Arduino Nano ESP32, NEMA17 steppers, TMC2209 drivers, fasteners, and all electronics. You 3D-print the body with our STL files. Maximum hands-on hardware learning.
- Complete electronics & fastener package
- STL files for 3D printing the body
- Detailed step-by-step assembly guide
- Learn 3D printing, wiring & assembly
Full Kit
Assembled Robot — Ready to Code
A fully assembled robotic arm, ready to program out of the box. Includes all 3D-printed parts, electronics, motors, and wiring. Perfect for programming classes and STEM labs.
- Fully assembled & tested robot
- ESP32 + NEMA17 motors + TMC2209 drivers
- Programming guide + sample code
- Plug & Play — start coding immediately
Digital Kit
Files Only — Pure DIY
STL files for 3D printing, a detailed BOM with purchase links, and a complete assembly guide. For true DIY enthusiasts and makers who love doing everything themselves.
- All STL files for 3D printing
- Bill of Materials (BOM) with links
- Step-by-step assembly guide
- Source code & documentation
Hardware & Skills
You Will Master
Professional components selected for reliability and real-world learning — every part of the robot is a lesson in engineering.
| Parameter | Specification |
|---|---|
| Microcontroller |
Arduino Nano ESP32 (ESP32-S3) WiFi, Dual-core, Arduino IDE / MicroPython WiFi C++ / Python |
| Drive System |
3× NEMA17 Stepper Motors TMC2209 v1.3 (Shared UART) SpreadCycle — silent & smooth operation Stepper Logic |
| Arm 1 (Base) | 150 mm range · Planetary gearbox 20:1 |
| Arm 2 | 150 mm range · Belt drive 4:1 |
| Z-Axis | Rack & pinion (dia. 60 mm) · 140 mm travel |
| Gripper | SG90 servo drive Adjustable grip force Servo PWM |
| Safety | Auto-homing limit switches on all axes Precise zeroing at every startup |
| Communication |
WiFi (HTTP / WebSocket), Serial UART Control from a browser, phone, or another MCU WiFi Control |
| Body Material | 3D-printed PLA/PETG Fully replaceable — print spare parts on demand 3D Print |
Skills You Will Master
C++ & MicroPython
Real microcontroller programming — not visual blocks
WiFi Control
HTTP requests, WebSocket, networking protocols in practice
Mechanical Design
Planetary gears, belt drives, rack & pinion systems
Electronics
Stepper motors, TMC2209 drivers, UART communication
Kinematics
Forward & inverse kinematics, coordinate systems
3D Printing
STL preparation, slicer setup, material selection
A Recognized Educational Tool
Our platform has been honored by leading technology and innovation organizations as a proven STEM learning instrument.
Certified Innovative Idea
Officially recognized and certified as an innovative concept by TLL Bulgaria — a confirmation of the value of our educational platform.
Robodays Recognition
Showcased and recognized at the Robodays exhibition, demonstrating the platform's potential before automation and education professionals.
Ready to Get Started?
Whether you're equipping a STEM lab, running a robotics club, or simply want to learn robotics at home — we'll help you choose the right kit.
Educational Discounts
Special pricing for schools, universities, and robotics clubs.
Teaching Materials
Guides, sample code, and project assignments for teachers.
Technical Support
Help with assembly, setup, and programming.
